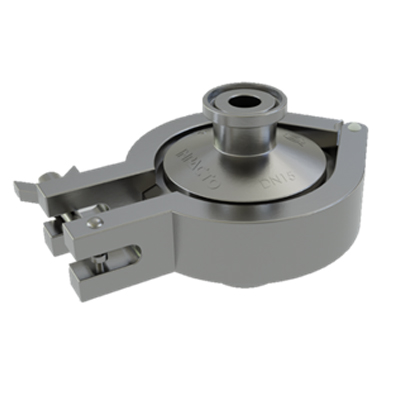

Clean Steam Trap

The ISTS 41, is a thermostatic balanced pressure steam trap tailored for the efficient removal of condensate in clean and pure steam system applications. Made from 316L stainless steel and designed without crevices, it is self-draining and operates at temperatures close to that of steam. The product line offers options that significantly decrease condensate accumulation, particularly suited for high-flow and critical applications in Clean-in-Place (CIP) and Sterilization-in-Place (SIP) processes.

Product Specifications
Material Structure	ASTM A 276 316L Inner parts: Stainless steel AISI 304
Connection	Tri-clover (TC) ends
Nominal Diameter	DN25 (1”) – DN50 (2”)
Working Pressure	Up to 10 bar
Working Temperature	Up to 140 ºC
Typical Applications	Sterilization of the WFI system Sterilization of fermenters Drainage of condensate from CIP/SIP systems Sterilizing process vessels and piping Culinary equipment systems Humidification systems Steam barrier systems (Blocks & Bleed)
